Half-Bridge IPM

The IPM series is a highly integrated power module in a compact package that can be used in a wide range of motor drive applications such as home appliances, water pumps, and industrial applications. The IPM series combines the benefits of energy efficiency and system footprint optimisation.

P/N	Package	Voltage Class	Configuration	RDS(ON)	Other Features

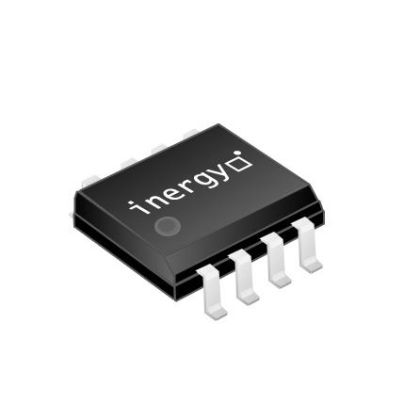

iT62140A	SOP-8L	60V	HIN+EN	60mΩ	BS-Diode
iT62143	SOP-8L	100V	HIN+EN	150mΩ	BS-Diode
iT62241A	QFN7x7-23L	500V	HIN+EN	2Ω	BS-Diode/Temp.Sensor
iT62242A	QFN7x7-23L	500V	HIN+EN	1.2Ω	BS-Diode/Temp.Sensor

iT62140A

60V IPM

Add to inquiry

iT62143

100V IPM

Add to inquiry

iT62241A

500V IPM

Add to inquiry

iT62242A

500V IPM

Add to inquiry
