Hall Sensor
inergy's Hall Sensor products use advanced integrated circuit technology to provide temperature stability, stress resistance, and high accuracy sensing capabilities. The products are widely used in home appliances, industrial automation, and other fields to provide accurate and reliable sensing solutions.
| P/N | Package | Supply Voltage | Supply Current (MAX) | Operation Point | Release Point |
Hysteresis (BOP-BRP) |
|

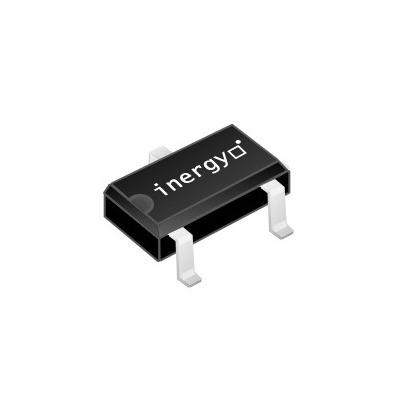

| iA1137S | SOT23-3L |
2.5V~26V |
5mA |
-60 ~ -5 Gauss | 5 ~ 60 Gauss | 60 Gauss | |
| iA1188D | SOT23-3L |
2.5V~26V |
5mA |
-25 ~ -5 Gauss | 5 ~ 25 Gauss | 30 Gauss | |
|

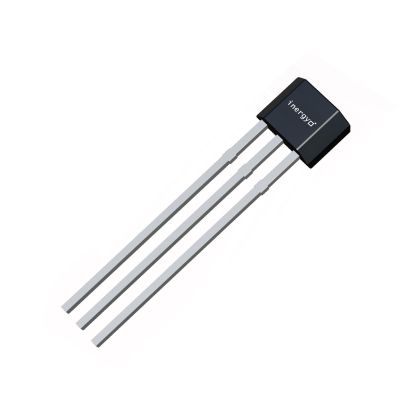

iA1188I |
SIP-3L |
2.5V~26V |
5mA |
-25 ~ -5 Gauss | 5 ~ 25 Gauss | 30 Gauss | |

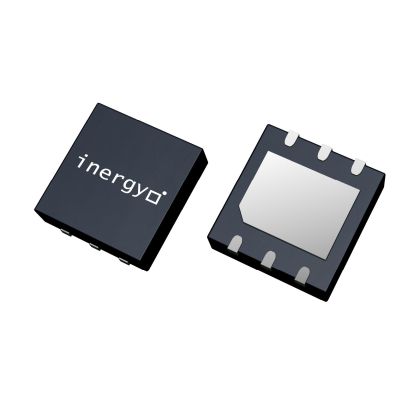

| iA1188N |
DFN1.6x1.6 |
2.5V~26V |
5mA |
-25 ~ -5 Gauss | 5 ~ 25 Gauss | 30 Gauss | |

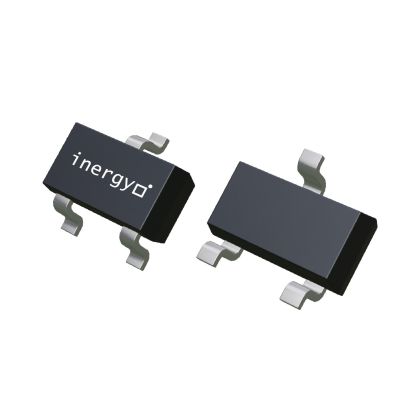

| iA1189S |
SOT23-3L |
2.5V~5V |
3mA |
-35~-10 Gauss | 10 ~ 35 Gauss | 45 Gauss | |
