Cooling Fan Driver
Cooling Fan Driver products are highly integrated with Hall Sensor, MOSFET, Gate Driver and logic circuit to achieve compact size, quiet operation and high reliability. The built-in multi-protection mechanism can effectively prevent overcurrent, overheating and other faults. This greatly increases the reliability of the system. Widely used in information equipment, servers, industrial control equipment, telecom base stations, home appliances, etc. to provide efficient heat dissipation solutions.
| P/N |
Package |
Hall Sensor | Input Voltage | Output Current Limit | Speed Control | Speed Curve Fittling | ||

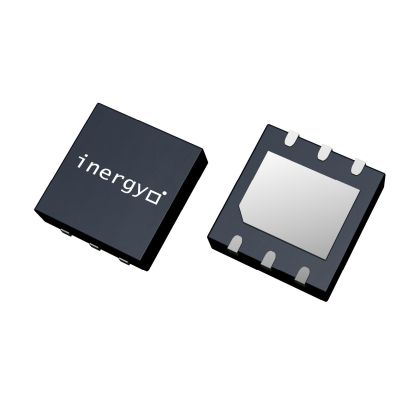

| iT1300E |

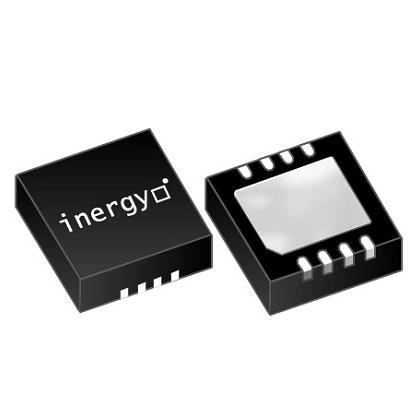

DFN3x3-8L |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
|
iT8300T |

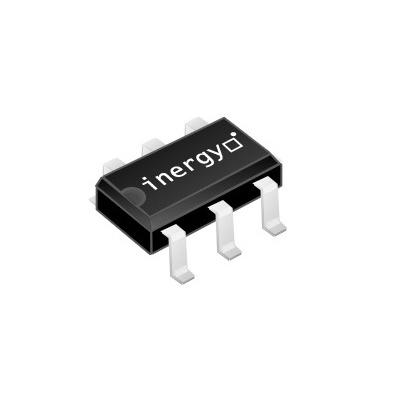

TSOT23-6L |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
| iT8300S |

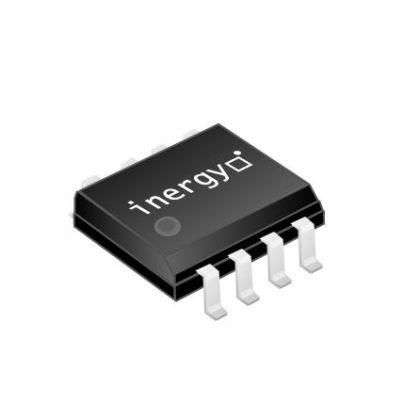

SOP8 |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
| iT8320E |
DFN3x3-8L |
External |
3.5 - 16 V |
2.1 A | Direct PWM | 3 points | ||
| iT8321E |
DFN3x3-8L |
Embedded |
3.5 - 16 V |
2.1 A | Direct PWM | 3 points | ||

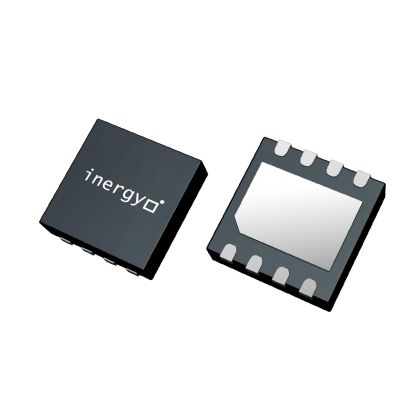

| iT8330E |
DFN3x3-8L |
External |
3 - 28 V |
1.2 A | Direct PWM & DC VSP | 3 points | ||
| iT8330S |
SOP8-EP |
External |
3 - 28 V | 1.2 A |
Direct PWM & DC VSP |
3 points | ||
