Cooling Fan Driver
Cooling Fan Driver 產品將Fan Driver與霍爾感測器、MOSFET、Gate Driver與邏輯電路高度整合，實現精巧尺寸、靜音驅動、高可靠的風扇驅動。產品內建多重保護機制，可有效防止過電流、過熱等故障事故，大幅提升系統可靠性。其廣泛應用於資訊設備、伺服器、工控設備、電信基地台、家電等領域，提供高效散熱的解決方案。
| P/N |
Package |
Hall Sensor | Input Voltage | Output Current Limit | Speed Control | Speed Curve Fittling | ||
| iT1300E |
DFN3x3-8L |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
|
iT8300T |
TSOT23-6L |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
| iT8300S |
SOP8 |
Embedded |
3.5 - 16 V |
1.2 A | Direct PWM | N/A | ||
| iT8320E |
DFN3x3-8L |
External |
3.5 - 16 V |
2.1 A | Direct PWM | 3 points | ||

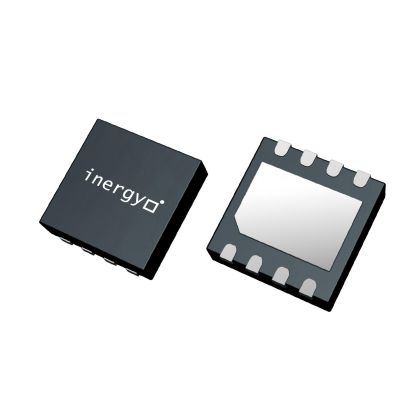

| iT8321E |
DFN3x3-8L |
Embedded |
3.5 - 16 V |
2.1 A | Direct PWM | 3 points | ||
| iT8330E |
DFN3x3-8L |
External |
3 - 28 V |
1.2 A | Direct PWM & DC VSP | 3 points | ||

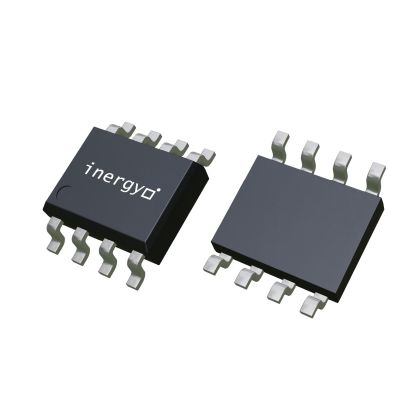

| iT8330S |
SOP8-EP |
External |
3 - 28 V | 1.2 A |
Direct PWM & DC VSP |
3 points | ||
