Current Sensor

Product Description

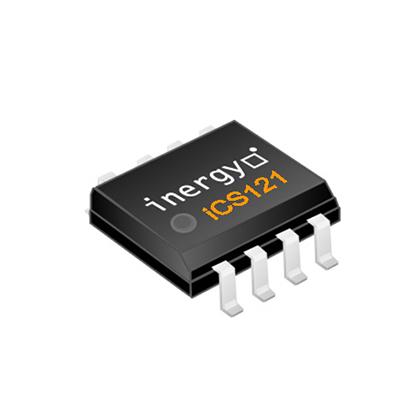

The iCS121 Linear Current Sensor IC from inergy Technology is a state-of-the-art, economical, and precise solution for AC/DC current sensing, perfect for both industrial and consumer applications. By integrating a high-accuracy Hall sensor, the iCS121 can accurately measure the current flowing through the primary conductor and convert it into a proportional voltage output, offering exceptional precision.

This bi-directional current sensor operates with galvanic isolation between the primary current conductor and the secondary sensor, ensuring safe and reliable current measurement for both high-side and low-side applications. The sensor is ideal for applications where low power consumption and fast response times are essential, such as in Wide Bandgap (WBG) power devices and motor control systems.

Featuring a 1.2 mΩ primary conductor resistor, the iCS121 is designed to minimize power losses, making it significantly more efficient compared to traditional current sensing methods. Additionally, with a high-speed response time of less than 1 microsecond, this sensor is well-suited for the latest power electronics technologies.

Its compact footprint ensures ease of integration into space-constrained designs, making it an ideal choice for everything from power management systems to renewable energy applications.

Key Features

• High-Precision AC/DC Current Sensing: Utilizes a Hall sensor to accurately sense current flow and convert it to a voltage output.
• Bi-Directional Operation: Supports current sensing in both directions for versatile applications.
• Galvanic Isolation: Provides electrical isolation between the primary conductor and secondary sensor, ensuring safety and flexibility in system design.
• Ultra-Low Power Loss: The 1.2 mΩ primary conductor resistor reduces power consumption compared to traditional current shunt methods.
• High-Speed Response (<1μs): Perfect for Wide Bandgap (WBG) power devices and applications requiring fast real-time current measurement.
• Small Footprint: Ideal for space-constrained designs, fitting seamlessly into compact systems.
• Low Resistance: Minimizes power dissipation and ensures high efficiency in current sensing.

Applications

• Power Management Systems
• Wide Bandgap (WBG) Power Devices
• Motor Control Systems
• Renewable Energy Systems
• Industrial Automation
• Battery Management Systems
• Electric Vehicles (EVs)
• Uninterruptible Power Supplies (UPS)
